ps7_init_gpl.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	OPCODE_EXIT   0U
#define	OPCODE_CLEAR   1U
#define	OPCODE_WRITE   2U
#define	OPCODE_MASKWRITE   3U
#define	OPCODE_MASKPOLL   4U
#define	OPCODE_MASKDELAY   5U
#define	NEW_PS7_ERR_CODE   1
#define	EMIT_EXIT()   ( (OPCODE_EXIT << 4 ) | 0 )
#define	EMIT_CLEAR(addr)   ( (OPCODE_CLEAR << 4 ) | 1 ) , addr
#define	EMIT_WRITE(addr, val)   ( (OPCODE_WRITE << 4 ) | 2 ) , addr, val
#define	EMIT_MASKWRITE(addr, mask, val)   ( (OPCODE_MASKWRITE << 4 ) | 3 ) , addr, mask, val
#define	EMIT_MASKPOLL(addr, mask)   ( (OPCODE_MASKPOLL << 4 ) | 2 ) , addr, mask
#define	EMIT_MASKDELAY(addr, mask)   ( (OPCODE_MASKDELAY << 4 ) | 2 ) , addr, mask
#define	PS7_INIT_SUCCESS   (0)
#define	PS7_INIT_CORRUPT   (1)
#define	PS7_INIT_TIMEOUT   (2)
#define	PS7_POLL_FAILED_DDR_INIT   (3)
#define	PS7_POLL_FAILED_DMA   (4)
#define	PS7_POLL_FAILED_PLL   (5)
#define	PCW_SILICON_VERSION_1   0
#define	PCW_SILICON_VERSION_2   1
#define	PCW_SILICON_VERSION_3   2
#define	PS7_POST_CONFIG
#define	APU_FREQ   666666687
#define	DDR_FREQ   533333374
#define	DCI_FREQ   10158730
#define	QSPI_FREQ   10000000
#define	SMC_FREQ   100000000
#define	ENET0_FREQ   25000000
#define	ENET1_FREQ   10000000
#define	USB0_FREQ   60000000
#define	USB1_FREQ   60000000
#define	SDIO_FREQ   100000000
#define	UART_FREQ   100000000
#define	SPI_FREQ   10000000
#define	I2C_FREQ   111111115
#define	WDT_FREQ   111111115
#define	TTC_FREQ   50000000
#define	CAN_FREQ   10000000
#define	PCAP_FREQ   200000000
#define	TPIU_FREQ   200000000
#define	FPGA0_FREQ   125000000
#define	FPGA1_FREQ   25000000
#define	FPGA2_FREQ   33333336
#define	FPGA3_FREQ   100000000
#define	SCU_GLOBAL_TIMER_COUNT_L32   0xF8F00200
#define	SCU_GLOBAL_TIMER_COUNT_U32   0xF8F00204
#define	SCU_GLOBAL_TIMER_CONTROL   0xF8F00208
#define	SCU_GLOBAL_TIMER_AUTO_INC   0xF8F00218

Functions
int	ps7_config (unsigned long *)
int	ps7_init ()
int	ps7_post_config ()
int	ps7_debug ()
char *	getPS7MessageInfo (unsigned key)
void	perf_start_clock (void)
void	perf_disable_clock (void)
void	perf_reset_clock (void)
void	perf_reset_and_start_timer ()
int	get_number_of_cycles_for_delay (unsigned int delay)

Variables
unsigned long *	ps7_ddr_init_data
	do we need to make this name more unique ? More...
unsigned long *	ps7_mio_init_data
unsigned long *	ps7_pll_init_data
unsigned long *	ps7_clock_init_data
unsigned long *	ps7_peripherals_init_data

Detailed Description

This file can be included in FSBL code to get prototype of ps7_init() function and error codes

Definition in file ps7_init_gpl.h.

Macro Definition Documentation

APU_FREQ

#define APU_FREQ   666666687

Definition at line 87 of file ps7_init_gpl.h.

CAN_FREQ

#define CAN_FREQ   10000000

Definition at line 102 of file ps7_init_gpl.h.

DCI_FREQ

#define DCI_FREQ   10158730

Definition at line 89 of file ps7_init_gpl.h.

DDR_FREQ

#define DDR_FREQ   533333374

Definition at line 88 of file ps7_init_gpl.h.

EMIT_CLEAR

#define EMIT_CLEAR

(

addr

)

( (OPCODE_CLEAR << 4 ) | 1 ) , addr

Definition at line 62 of file ps7_init_gpl.h.

EMIT_EXIT

#define EMIT_EXIT

(

)

( (OPCODE_EXIT << 4 ) | 0 )

Definition at line 61 of file ps7_init_gpl.h.

EMIT_MASKDELAY

#define EMIT_MASKDELAY	(		addr,
			mask
	)		( (OPCODE_MASKDELAY << 4 ) | 2 ) , addr, mask

Definition at line 66 of file ps7_init_gpl.h.

EMIT_MASKPOLL

#define EMIT_MASKPOLL	(		addr,
			mask
	)		( (OPCODE_MASKPOLL << 4 ) | 2 ) , addr, mask

Definition at line 65 of file ps7_init_gpl.h.

EMIT_MASKWRITE

#define EMIT_MASKWRITE	(		addr,
			mask,
			val
	)		( (OPCODE_MASKWRITE << 4 ) | 3 ) , addr, mask, val

Definition at line 64 of file ps7_init_gpl.h.

EMIT_WRITE

#define EMIT_WRITE	(		addr,
			val
	)		( (OPCODE_WRITE << 4 ) | 2 ) , addr, val

Definition at line 63 of file ps7_init_gpl.h.

ENET0_FREQ

#define ENET0_FREQ   25000000

Definition at line 92 of file ps7_init_gpl.h.

ENET1_FREQ

#define ENET1_FREQ   10000000

Definition at line 93 of file ps7_init_gpl.h.

FPGA0_FREQ

#define FPGA0_FREQ   125000000

Definition at line 105 of file ps7_init_gpl.h.

FPGA1_FREQ

#define FPGA1_FREQ   25000000

Definition at line 106 of file ps7_init_gpl.h.

FPGA2_FREQ

#define FPGA2_FREQ   33333336

Definition at line 107 of file ps7_init_gpl.h.

FPGA3_FREQ

#define FPGA3_FREQ   100000000

Definition at line 108 of file ps7_init_gpl.h.

I2C_FREQ

#define I2C_FREQ   111111115

Definition at line 99 of file ps7_init_gpl.h.

NEW_PS7_ERR_CODE

#define NEW_PS7_ERR_CODE   1

Definition at line 58 of file ps7_init_gpl.h.

OPCODE_CLEAR

#define OPCODE_CLEAR   1U

Definition at line 53 of file ps7_init_gpl.h.

OPCODE_EXIT

#define OPCODE_EXIT   0U

Definition at line 52 of file ps7_init_gpl.h.

OPCODE_MASKDELAY

#define OPCODE_MASKDELAY   5U

Definition at line 57 of file ps7_init_gpl.h.

OPCODE_MASKPOLL

#define OPCODE_MASKPOLL   4U

Definition at line 56 of file ps7_init_gpl.h.

OPCODE_MASKWRITE

#define OPCODE_MASKWRITE   3U

Definition at line 55 of file ps7_init_gpl.h.

OPCODE_WRITE

#define OPCODE_WRITE   2U

Definition at line 54 of file ps7_init_gpl.h.

PCAP_FREQ

#define PCAP_FREQ   200000000

Definition at line 103 of file ps7_init_gpl.h.

PCW_SILICON_VERSION_1

#define PCW_SILICON_VERSION_1   0

Definition at line 78 of file ps7_init_gpl.h.

PCW_SILICON_VERSION_2

#define PCW_SILICON_VERSION_2   1

Definition at line 79 of file ps7_init_gpl.h.

PCW_SILICON_VERSION_3

#define PCW_SILICON_VERSION_3   2

Definition at line 80 of file ps7_init_gpl.h.

PS7_INIT_CORRUPT

#define PS7_INIT_CORRUPT   (1)

Definition at line 70 of file ps7_init_gpl.h.

PS7_INIT_SUCCESS

#define PS7_INIT_SUCCESS   (0)

Definition at line 69 of file ps7_init_gpl.h.

PS7_INIT_TIMEOUT

#define PS7_INIT_TIMEOUT   (2)

Definition at line 71 of file ps7_init_gpl.h.

PS7_POLL_FAILED_DDR_INIT

#define PS7_POLL_FAILED_DDR_INIT   (3)

Definition at line 72 of file ps7_init_gpl.h.

PS7_POLL_FAILED_DMA

#define PS7_POLL_FAILED_DMA   (4)

Definition at line 73 of file ps7_init_gpl.h.

PS7_POLL_FAILED_PLL

#define PS7_POLL_FAILED_PLL   (5)

Definition at line 74 of file ps7_init_gpl.h.

PS7_POST_CONFIG

#define PS7_POST_CONFIG

Definition at line 83 of file ps7_init_gpl.h.

QSPI_FREQ

#define QSPI_FREQ   10000000

Definition at line 90 of file ps7_init_gpl.h.

SCU_GLOBAL_TIMER_AUTO_INC

#define SCU_GLOBAL_TIMER_AUTO_INC   0xF8F00218

Definition at line 115 of file ps7_init_gpl.h.

SCU_GLOBAL_TIMER_CONTROL

#define SCU_GLOBAL_TIMER_CONTROL   0xF8F00208

Definition at line 114 of file ps7_init_gpl.h.

SCU_GLOBAL_TIMER_COUNT_L32

#define SCU_GLOBAL_TIMER_COUNT_L32   0xF8F00200

Definition at line 112 of file ps7_init_gpl.h.

SCU_GLOBAL_TIMER_COUNT_U32

#define SCU_GLOBAL_TIMER_COUNT_U32   0xF8F00204

Definition at line 113 of file ps7_init_gpl.h.

SDIO_FREQ

#define SDIO_FREQ   100000000

Definition at line 96 of file ps7_init_gpl.h.

SMC_FREQ

#define SMC_FREQ   100000000

Definition at line 91 of file ps7_init_gpl.h.

SPI_FREQ

#define SPI_FREQ   10000000

Definition at line 98 of file ps7_init_gpl.h.

TPIU_FREQ

#define TPIU_FREQ   200000000

Definition at line 104 of file ps7_init_gpl.h.

TTC_FREQ

#define TTC_FREQ   50000000

Definition at line 101 of file ps7_init_gpl.h.

UART_FREQ

#define UART_FREQ   100000000

Definition at line 97 of file ps7_init_gpl.h.

USB0_FREQ

#define USB0_FREQ   60000000

Definition at line 94 of file ps7_init_gpl.h.

USB1_FREQ

#define USB1_FREQ   60000000

Definition at line 95 of file ps7_init_gpl.h.

WDT_FREQ

#define WDT_FREQ   111111115

Definition at line 100 of file ps7_init_gpl.h.

Function Documentation

get_number_of_cycles_for_delay()

int get_number_of_cycles_for_delay

(

unsigned int

delay

)

Definition at line 12325 of file ps7_init.c.

References APU_FREQ.

Referenced by ps7_config().

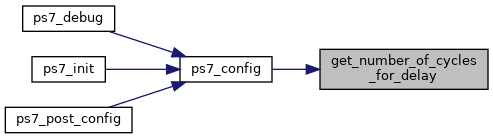

Here is the caller graph for this function:

getPS7MessageInfo()

char* getPS7MessageInfo

(

unsigned

key

)

Definition at line 12066 of file ps7_init.c.

References PS7_INIT_CORRUPT, PS7_INIT_SUCCESS, PS7_INIT_TIMEOUT, PS7_POLL_FAILED_DDR_INIT, PS7_POLL_FAILED_DMA, and PS7_POLL_FAILED_PLL.

perf_disable_clock()

void perf_disable_clock

(

void

)

Definition at line 12333 of file ps7_init.c.

References SCU_GLOBAL_TIMER_CONTROL.

Referenced by perf_reset_clock().

Here is the caller graph for this function:

perf_reset_and_start_timer()

void perf_reset_and_start_timer

(

)

Definition at line 12338 of file ps7_init.c.

References perf_reset_clock(), and perf_start_clock().

Referenced by ps7_config().

Here is the call graph for this function:

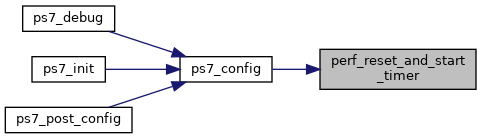

Here is the caller graph for this function:

perf_reset_clock()

void perf_reset_clock

(

void

)

Definition at line 12317 of file ps7_init.c.

References perf_disable_clock(), SCU_GLOBAL_TIMER_COUNT_L32, and SCU_GLOBAL_TIMER_COUNT_U32.

Referenced by perf_reset_and_start_timer().

Here is the call graph for this function:

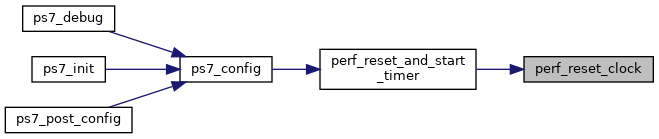

Here is the caller graph for this function:

perf_start_clock()

void perf_start_clock

(

void

)

Definition at line 12308 of file ps7_init.c.

References SCU_GLOBAL_TIMER_CONTROL.

Referenced by perf_reset_and_start_timer().

Here is the caller graph for this function:

ps7_config()

int ps7_config

(

unsigned long *

)

Definition at line 12121 of file ps7_init.c.

References get_number_of_cycles_for_delay(), OPCODE_CLEAR, OPCODE_EXIT, OPCODE_MASKDELAY, OPCODE_MASKPOLL, OPCODE_MASKWRITE, OPCODE_WRITE, perf_reset_and_start_timer(), PS7_INIT_CORRUPT, PS7_INIT_SUCCESS, PS7_INIT_TIMEOUT, and PS7_MASK_POLL_TIME.

Referenced by ps7_debug(), ps7_init(), and ps7_post_config().

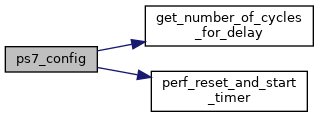

Here is the call graph for this function:

Here is the caller graph for this function:

ps7_debug()

int ps7_debug

(

)

Definition at line 12225 of file ps7_init.c.

References PCW_SILICON_VERSION_1, PCW_SILICON_VERSION_2, ps7_config(), ps7_debug_1_0, ps7_debug_2_0, ps7_debug_3_0, PS7_INIT_SUCCESS, and ps7GetSiliconVersion().

Here is the call graph for this function:

ps7_init()

int ps7_init

(

)

Definition at line 12245 of file ps7_init.c.

References PCW_SILICON_VERSION_1, PCW_SILICON_VERSION_2, ps7_clock_init_data, ps7_clock_init_data_1_0, ps7_clock_init_data_2_0, ps7_clock_init_data_3_0, ps7_config(), ps7_ddr_init_data, ps7_ddr_init_data_1_0, ps7_ddr_init_data_2_0, ps7_ddr_init_data_3_0, PS7_INIT_SUCCESS, ps7_mio_init_data, ps7_mio_init_data_1_0, ps7_mio_init_data_2_0, ps7_mio_init_data_3_0, ps7_peripherals_init_data, ps7_peripherals_init_data_1_0, ps7_peripherals_init_data_2_0, ps7_peripherals_init_data_3_0, ps7_pll_init_data, ps7_pll_init_data_1_0, ps7_pll_init_data_2_0, ps7_pll_init_data_3_0, and ps7GetSiliconVersion().

Here is the call graph for this function:

ps7_post_config()

int ps7_post_config

(

)

Definition at line 12206 of file ps7_init.c.

References PCW_SILICON_VERSION_1, PCW_SILICON_VERSION_2, ps7_config(), PS7_INIT_SUCCESS, ps7_post_config_1_0, ps7_post_config_2_0, ps7_post_config_3_0, and ps7GetSiliconVersion().

Here is the call graph for this function:

Variable Documentation

ps7_clock_init_data

unsigned long* ps7_clock_init_data

Definition at line 12201 of file ps7_init.c.

Referenced by ps7_init().

ps7_ddr_init_data

unsigned long* ps7_ddr_init_data

do we need to make this name more unique ?

Definition at line 12202 of file ps7_init.c.

Referenced by ps7_init().

ps7_mio_init_data

unsigned long* ps7_mio_init_data

Definition at line 12199 of file ps7_init.c.

Referenced by ps7_init().

ps7_peripherals_init_data

unsigned long* ps7_peripherals_init_data

Definition at line 12203 of file ps7_init.c.

Referenced by ps7_init().

ps7_pll_init_data

unsigned long* ps7_pll_init_data

Definition at line 12200 of file ps7_init.c.

Referenced by ps7_init().
