ps7_init_gpl.c File Reference

#include "ps7_init_gpl.h"
#include "xil_io.h"

Include dependency graph for ps7_init_gpl.c:

Go to the source code of this file.

Macros
#define	PS7_MASK_POLL_TIME   100000000

Functions
char *	getPS7MessageInfo (unsigned key)
unsigned long	ps7GetSiliconVersion ()
void	mask_write (unsigned long add, unsigned long mask, unsigned long val)
int	mask_poll (unsigned long add, unsigned long mask)
unsigned long	mask_read (unsigned long add, unsigned long mask)
int	ps7_config (unsigned long *ps7_config_init)
int	ps7_post_config ()
int	ps7_debug ()
int	ps7_init ()
void	perf_start_clock (void)
void	perf_reset_clock (void)
int	get_number_of_cycles_for_delay (unsigned int delay)
void	perf_disable_clock (void)
void	perf_reset_and_start_timer ()

Variables
unsigned long	ps7_pll_init_data_3_0 []
unsigned long	ps7_clock_init_data_3_0 []
unsigned long	ps7_ddr_init_data_3_0 []
unsigned long	ps7_mio_init_data_3_0 []
unsigned long	ps7_peripherals_init_data_3_0 []
unsigned long	ps7_post_config_3_0 []
unsigned long	ps7_debug_3_0 []
unsigned long	ps7_pll_init_data_2_0 []
unsigned long	ps7_clock_init_data_2_0 []
unsigned long	ps7_ddr_init_data_2_0 []
unsigned long	ps7_mio_init_data_2_0 []
unsigned long	ps7_peripherals_init_data_2_0 []
unsigned long	ps7_post_config_2_0 []
unsigned long	ps7_debug_2_0 []
unsigned long	ps7_pll_init_data_1_0 []
unsigned long	ps7_clock_init_data_1_0 []
unsigned long	ps7_ddr_init_data_1_0 []
unsigned long	ps7_mio_init_data_1_0 []
unsigned long	ps7_peripherals_init_data_1_0 []
unsigned long	ps7_post_config_1_0 []
unsigned long	ps7_debug_1_0 []
unsigned long *	ps7_mio_init_data = ps7_mio_init_data_3_0
unsigned long *	ps7_pll_init_data = ps7_pll_init_data_3_0
unsigned long *	ps7_clock_init_data = ps7_clock_init_data_3_0
unsigned long *	ps7_ddr_init_data = ps7_ddr_init_data_3_0
	do we need to make this name more unique ? More...
unsigned long *	ps7_peripherals_init_data = ps7_peripherals_init_data_3_0

Detailed Description

This file is automatically generated

Definition in file ps7_init_gpl.c.

Macro Definition Documentation

PS7_MASK_POLL_TIME

#define PS7_MASK_POLL_TIME   100000000

Definition at line 12076 of file ps7_init_gpl.c.

Function Documentation

get_number_of_cycles_for_delay()

int get_number_of_cycles_for_delay

(

unsigned int

delay

)

Definition at line 12338 of file ps7_init_gpl.c.

References APU_FREQ.

Referenced by ps7_config().

Here is the caller graph for this function:

getPS7MessageInfo()

char* getPS7MessageInfo

(

unsigned

key

)

Definition at line 12079 of file ps7_init_gpl.c.

References PS7_INIT_CORRUPT, PS7_INIT_SUCCESS, PS7_INIT_TIMEOUT, PS7_POLL_FAILED_DDR_INIT, PS7_POLL_FAILED_DMA, and PS7_POLL_FAILED_PLL.

mask_poll()

int mask_poll	(	unsigned long	add,
		unsigned long	mask
	)

Definition at line 12111 of file ps7_init_gpl.c.

References PS7_MASK_POLL_TIME.

mask_read()

unsigned long mask_read	(	unsigned long	add,
		unsigned long	mask
	)

Definition at line 12124 of file ps7_init_gpl.c.

mask_write()

void mask_write	(	unsigned long	add,
		unsigned long	mask,
		unsigned long	val
	)

Definition at line 12104 of file ps7_init_gpl.c.

perf_disable_clock()

void perf_disable_clock

(

void

)

Definition at line 12346 of file ps7_init_gpl.c.

References SCU_GLOBAL_TIMER_CONTROL.

Referenced by perf_reset_clock().

Here is the caller graph for this function:

perf_reset_and_start_timer()

void perf_reset_and_start_timer

(

)

Definition at line 12351 of file ps7_init_gpl.c.

References perf_reset_clock(), and perf_start_clock().

Referenced by ps7_config().

Here is the call graph for this function:

Here is the caller graph for this function:

perf_reset_clock()

void perf_reset_clock

(

void

)

Definition at line 12330 of file ps7_init_gpl.c.

References perf_disable_clock(), SCU_GLOBAL_TIMER_COUNT_L32, and SCU_GLOBAL_TIMER_COUNT_U32.

Referenced by perf_reset_and_start_timer().

Here is the call graph for this function:

Here is the caller graph for this function:

perf_start_clock()

void perf_start_clock

(

void

)

Definition at line 12321 of file ps7_init_gpl.c.

References SCU_GLOBAL_TIMER_CONTROL.

Referenced by perf_reset_and_start_timer().

Here is the caller graph for this function:

ps7_config()

int ps7_config

(

unsigned long *

ps7_config_init

)

Definition at line 12134 of file ps7_init_gpl.c.

References get_number_of_cycles_for_delay(), OPCODE_CLEAR, OPCODE_EXIT, OPCODE_MASKDELAY, OPCODE_MASKPOLL, OPCODE_MASKWRITE, OPCODE_WRITE, perf_reset_and_start_timer(), PS7_INIT_CORRUPT, PS7_INIT_SUCCESS, PS7_INIT_TIMEOUT, and PS7_MASK_POLL_TIME.

Referenced by ps7_debug(), ps7_init(), and ps7_post_config().

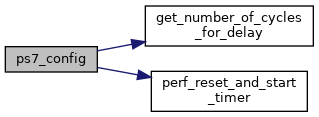

Here is the call graph for this function:

Here is the caller graph for this function:

ps7_debug()

int ps7_debug

(

)

Definition at line 12238 of file ps7_init_gpl.c.

References PCW_SILICON_VERSION_1, PCW_SILICON_VERSION_2, ps7_config(), ps7_debug_1_0, ps7_debug_2_0, ps7_debug_3_0, PS7_INIT_SUCCESS, and ps7GetSiliconVersion().

Here is the call graph for this function:

ps7_init()

int ps7_init

(

)

Definition at line 12258 of file ps7_init_gpl.c.

References PCW_SILICON_VERSION_1, PCW_SILICON_VERSION_2, ps7_clock_init_data, ps7_clock_init_data_1_0, ps7_clock_init_data_2_0, ps7_clock_init_data_3_0, ps7_config(), ps7_ddr_init_data, ps7_ddr_init_data_1_0, ps7_ddr_init_data_2_0, ps7_ddr_init_data_3_0, PS7_INIT_SUCCESS, ps7_mio_init_data, ps7_mio_init_data_1_0, ps7_mio_init_data_2_0, ps7_mio_init_data_3_0, ps7_peripherals_init_data, ps7_peripherals_init_data_1_0, ps7_peripherals_init_data_2_0, ps7_peripherals_init_data_3_0, ps7_pll_init_data, ps7_pll_init_data_1_0, ps7_pll_init_data_2_0, ps7_pll_init_data_3_0, and ps7GetSiliconVersion().

Here is the call graph for this function:

ps7_post_config()

int ps7_post_config

(

)

Definition at line 12219 of file ps7_init_gpl.c.

References PCW_SILICON_VERSION_1, PCW_SILICON_VERSION_2, ps7_config(), PS7_INIT_SUCCESS, ps7_post_config_1_0, ps7_post_config_2_0, ps7_post_config_3_0, and ps7GetSiliconVersion().

Here is the call graph for this function:

ps7GetSiliconVersion()

unsigned long ps7GetSiliconVersion

(

)

Definition at line 12096 of file ps7_init_gpl.c.

Referenced by ps7_debug(), ps7_init(), and ps7_post_config().

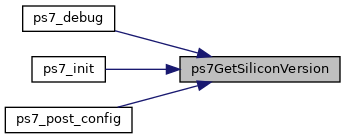

Here is the caller graph for this function:

Variable Documentation

ps7_clock_init_data

unsigned long* ps7_clock_init_data = ps7_clock_init_data_3_0

Definition at line 12214 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_clock_init_data_1_0

unsigned long ps7_clock_init_data_1_0[]

Definition at line 8280 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_clock_init_data_2_0

unsigned long ps7_clock_init_data_2_0[]

Definition at line 4192 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_clock_init_data_3_0

unsigned long ps7_clock_init_data_3_0[]

Definition at line 257 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_ddr_init_data

unsigned long* ps7_ddr_init_data = ps7_ddr_init_data_3_0

do we need to make this name more unique ?

Definition at line 12215 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_ddr_init_data_1_0

unsigned long ps7_ddr_init_data_1_0[]

Definition at line 8497 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_ddr_init_data_2_0

unsigned long ps7_ddr_init_data_2_0[]

Definition at line 4409 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_ddr_init_data_3_0

unsigned long ps7_ddr_init_data_3_0[]

Definition at line 474 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_debug_1_0

unsigned long ps7_debug_1_0[]

Definition at line 12042 of file ps7_init_gpl.c.

Referenced by ps7_debug().

ps7_debug_2_0

unsigned long ps7_debug_2_0[]

Definition at line 8021 of file ps7_init_gpl.c.

Referenced by ps7_debug().

ps7_debug_3_0

unsigned long ps7_debug_3_0[]

Definition at line 3933 of file ps7_init_gpl.c.

Referenced by ps7_debug().

ps7_mio_init_data

unsigned long* ps7_mio_init_data = ps7_mio_init_data_3_0

Definition at line 12212 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_mio_init_data_1_0

unsigned long ps7_mio_init_data_1_0[]

Definition at line 9737 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_mio_init_data_2_0

unsigned long ps7_mio_init_data_2_0[]

Definition at line 5713 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_mio_init_data_3_0

unsigned long ps7_mio_init_data_3_0[]

Definition at line 1626 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_peripherals_init_data

unsigned long* ps7_peripherals_init_data = ps7_peripherals_init_data_3_0

Definition at line 12216 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_peripherals_init_data_1_0

unsigned long ps7_peripherals_init_data_1_0[]

Definition at line 11725 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_peripherals_init_data_2_0

unsigned long ps7_peripherals_init_data_2_0[]

Definition at line 7704 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_peripherals_init_data_3_0

unsigned long ps7_peripherals_init_data_3_0[]

Definition at line 3614 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_pll_init_data

unsigned long* ps7_pll_init_data = ps7_pll_init_data_3_0

Definition at line 12213 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_pll_init_data_1_0

unsigned long ps7_pll_init_data_1_0[]

Definition at line 8053 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_pll_init_data_2_0

unsigned long ps7_pll_init_data_2_0[]

Definition at line 3965 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_pll_init_data_3_0

unsigned long ps7_pll_init_data_3_0[]

Definition at line 30 of file ps7_init_gpl.c.

Referenced by ps7_init().

ps7_post_config_1_0

unsigned long ps7_post_config_1_0[]

Definition at line 11932 of file ps7_init_gpl.c.

Referenced by ps7_post_config().

ps7_post_config_2_0

unsigned long ps7_post_config_2_0[]

Definition at line 7911 of file ps7_init_gpl.c.

Referenced by ps7_post_config().

ps7_post_config_3_0

unsigned long ps7_post_config_3_0[]

Definition at line 3815 of file ps7_init_gpl.c.

Referenced by ps7_post_config().
