ps7_init.c File Reference

#include "ps7_init.h"
#include "xil_io.h"

Include dependency graph for ps7_init.c:

Go to the source code of this file.

Macros
#define	PS7_MASK_POLL_TIME   100000000

Functions
char *	getPS7MessageInfo (unsigned key)
unsigned long	ps7GetSiliconVersion ()
void	mask_write (unsigned long add, unsigned long mask, unsigned long val)
int	mask_poll (unsigned long add, unsigned long mask)
unsigned long	mask_read (unsigned long add, unsigned long mask)
int	ps7_config (unsigned long *ps7_config_init)
int	ps7_post_config ()
int	ps7_debug ()
int	ps7_init ()
void	perf_start_clock (void)
void	perf_reset_clock (void)
int	get_number_of_cycles_for_delay (unsigned int delay)
void	perf_disable_clock (void)
void	perf_reset_and_start_timer ()

Variables
unsigned long	ps7_pll_init_data_3_0 []
unsigned long	ps7_clock_init_data_3_0 []
unsigned long	ps7_ddr_init_data_3_0 []
unsigned long	ps7_mio_init_data_3_0 []
unsigned long	ps7_peripherals_init_data_3_0 []
unsigned long	ps7_post_config_3_0 []
unsigned long	ps7_debug_3_0 []
unsigned long	ps7_pll_init_data_2_0 []
unsigned long	ps7_clock_init_data_2_0 []
unsigned long	ps7_ddr_init_data_2_0 []
unsigned long	ps7_mio_init_data_2_0 []
unsigned long	ps7_peripherals_init_data_2_0 []
unsigned long	ps7_post_config_2_0 []
unsigned long	ps7_debug_2_0 []
unsigned long	ps7_pll_init_data_1_0 []
unsigned long	ps7_clock_init_data_1_0 []
unsigned long	ps7_ddr_init_data_1_0 []
unsigned long	ps7_mio_init_data_1_0 []
unsigned long	ps7_peripherals_init_data_1_0 []
unsigned long	ps7_post_config_1_0 []
unsigned long	ps7_debug_1_0 []
unsigned long *	ps7_mio_init_data = ps7_mio_init_data_3_0
unsigned long *	ps7_pll_init_data = ps7_pll_init_data_3_0
unsigned long *	ps7_clock_init_data = ps7_clock_init_data_3_0
unsigned long *	ps7_ddr_init_data = ps7_ddr_init_data_3_0
	do we need to make this name more unique ? More...
unsigned long *	ps7_peripherals_init_data = ps7_peripherals_init_data_3_0

Detailed Description

This file is automatically generated

Definition in file ps7_init.c.

Macro Definition Documentation

PS7_MASK_POLL_TIME

#define PS7_MASK_POLL_TIME   100000000

Definition at line 12063 of file ps7_init.c.

Function Documentation

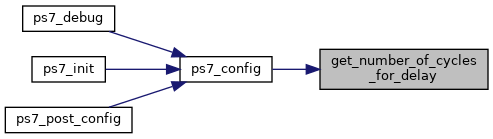

get_number_of_cycles_for_delay()

int get_number_of_cycles_for_delay

(

unsigned int

delay

)

Definition at line 12325 of file ps7_init.c.

Referenced by ps7_config().

Here is the caller graph for this function:

getPS7MessageInfo()

char* getPS7MessageInfo

(

unsigned

key

)

Definition at line 12066 of file ps7_init.c.

mask_poll()

int mask_poll	(	unsigned long	add,
		unsigned long	mask
	)

Definition at line 12098 of file ps7_init.c.

References PS7_MASK_POLL_TIME.

mask_read()

unsigned long mask_read	(	unsigned long	add,
		unsigned long	mask
	)

Definition at line 12111 of file ps7_init.c.

mask_write()

void mask_write	(	unsigned long	add,
		unsigned long	mask,
		unsigned long	val
	)

Definition at line 12091 of file ps7_init.c.

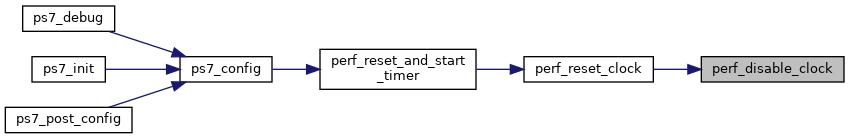

perf_disable_clock()

void perf_disable_clock

(

void

)

Definition at line 12333 of file ps7_init.c.

Referenced by perf_reset_clock().

Here is the caller graph for this function:

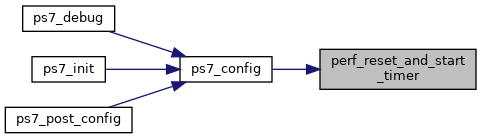

perf_reset_and_start_timer()

void perf_reset_and_start_timer

(

)

Definition at line 12338 of file ps7_init.c.

Referenced by ps7_config().

Here is the caller graph for this function:

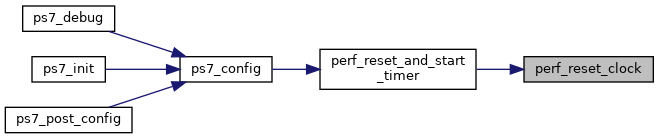

perf_reset_clock()

void perf_reset_clock

(

void

)

Definition at line 12317 of file ps7_init.c.

Referenced by perf_reset_and_start_timer().

Here is the caller graph for this function:

perf_start_clock()

void perf_start_clock

(

void

)

Definition at line 12308 of file ps7_init.c.

Referenced by perf_reset_and_start_timer().

Here is the caller graph for this function:

ps7_config()

int ps7_config

(

unsigned long *

ps7_config_init

)

Definition at line 12121 of file ps7_init.c.

Referenced by ps7_debug(), ps7_init(), and ps7_post_config().

Here is the caller graph for this function:

ps7_debug()

int ps7_debug

(

)

Definition at line 12225 of file ps7_init.c.

ps7_init()

int ps7_init

(

)

Definition at line 12245 of file ps7_init.c.

ps7_post_config()

int ps7_post_config

(

)

Definition at line 12206 of file ps7_init.c.

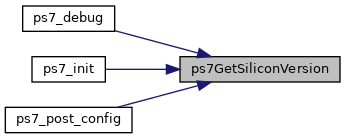

ps7GetSiliconVersion()

unsigned long ps7GetSiliconVersion

(

)

Definition at line 12083 of file ps7_init.c.

Referenced by ps7_debug(), ps7_init(), and ps7_post_config().

Here is the caller graph for this function:

Variable Documentation

ps7_clock_init_data

unsigned long* ps7_clock_init_data = ps7_clock_init_data_3_0

Definition at line 12201 of file ps7_init.c.

Referenced by ps7_init().

ps7_clock_init_data_1_0

unsigned long ps7_clock_init_data_1_0[]

Definition at line 8267 of file ps7_init.c.

Referenced by ps7_init().

ps7_clock_init_data_2_0

unsigned long ps7_clock_init_data_2_0[]

Definition at line 4179 of file ps7_init.c.

Referenced by ps7_init().

ps7_clock_init_data_3_0

unsigned long ps7_clock_init_data_3_0[]

Definition at line 244 of file ps7_init.c.

Referenced by ps7_init().

ps7_ddr_init_data

unsigned long* ps7_ddr_init_data = ps7_ddr_init_data_3_0

do we need to make this name more unique ?

Definition at line 12202 of file ps7_init.c.

Referenced by ps7_init().

ps7_ddr_init_data_1_0

unsigned long ps7_ddr_init_data_1_0[]

Definition at line 8484 of file ps7_init.c.

Referenced by ps7_init().

ps7_ddr_init_data_2_0

unsigned long ps7_ddr_init_data_2_0[]

Definition at line 4396 of file ps7_init.c.

Referenced by ps7_init().

ps7_ddr_init_data_3_0

unsigned long ps7_ddr_init_data_3_0[]

Definition at line 461 of file ps7_init.c.

Referenced by ps7_init().

ps7_debug_1_0

unsigned long ps7_debug_1_0[]

Definition at line 12029 of file ps7_init.c.

Referenced by ps7_debug().

ps7_debug_2_0

unsigned long ps7_debug_2_0[]

Definition at line 8008 of file ps7_init.c.

Referenced by ps7_debug().

ps7_debug_3_0

unsigned long ps7_debug_3_0[]

Definition at line 3920 of file ps7_init.c.

Referenced by ps7_debug().

ps7_mio_init_data

unsigned long* ps7_mio_init_data = ps7_mio_init_data_3_0

Definition at line 12199 of file ps7_init.c.

Referenced by ps7_init().

ps7_mio_init_data_1_0

unsigned long ps7_mio_init_data_1_0[]

Definition at line 9724 of file ps7_init.c.

Referenced by ps7_init().

ps7_mio_init_data_2_0

unsigned long ps7_mio_init_data_2_0[]

Definition at line 5700 of file ps7_init.c.

Referenced by ps7_init().

ps7_mio_init_data_3_0

unsigned long ps7_mio_init_data_3_0[]

Definition at line 1613 of file ps7_init.c.

Referenced by ps7_init().

ps7_peripherals_init_data

unsigned long* ps7_peripherals_init_data = ps7_peripherals_init_data_3_0

Definition at line 12203 of file ps7_init.c.

Referenced by ps7_init().

ps7_peripherals_init_data_1_0

unsigned long ps7_peripherals_init_data_1_0[]

Definition at line 11712 of file ps7_init.c.

Referenced by ps7_init().

ps7_peripherals_init_data_2_0

unsigned long ps7_peripherals_init_data_2_0[]

Definition at line 7691 of file ps7_init.c.

Referenced by ps7_init().

ps7_peripherals_init_data_3_0

unsigned long ps7_peripherals_init_data_3_0[]

Definition at line 3601 of file ps7_init.c.

Referenced by ps7_init().

ps7_pll_init_data

unsigned long* ps7_pll_init_data = ps7_pll_init_data_3_0

Definition at line 12200 of file ps7_init.c.

Referenced by ps7_init().

ps7_pll_init_data_1_0

unsigned long ps7_pll_init_data_1_0[]

Definition at line 8040 of file ps7_init.c.

Referenced by ps7_init().

ps7_pll_init_data_2_0

unsigned long ps7_pll_init_data_2_0[]

Definition at line 3952 of file ps7_init.c.

Referenced by ps7_init().

ps7_pll_init_data_3_0

unsigned long ps7_pll_init_data_3_0[]

Definition at line 17 of file ps7_init.c.

Referenced by ps7_init().

ps7_post_config_1_0

unsigned long ps7_post_config_1_0[]

Definition at line 11919 of file ps7_init.c.

Referenced by ps7_post_config().

ps7_post_config_2_0

unsigned long ps7_post_config_2_0[]

Definition at line 7898 of file ps7_init.c.

Referenced by ps7_post_config().

ps7_post_config_3_0

unsigned long ps7_post_config_3_0[]

Definition at line 3802 of file ps7_init.c.

Referenced by ps7_post_config().
